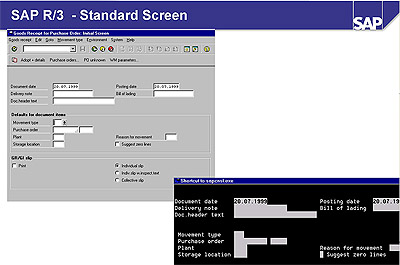

Supports standard ABAP/SAPGui application, which enables Standard Development -Development for RF and other control devices could be performed by ABAP/4 programmers Efficient testing and maintenance -Application testing could be done locally in a standard SAPGui environment Increase the reusability level of the ABAP/4 development
Character-Cell Frontend -SAPConsole

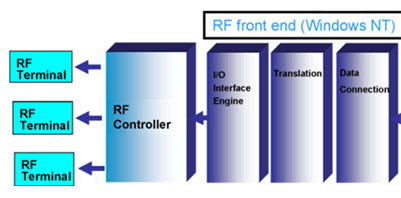

COM technology to enable integration with different I/O engines, including RF optimized communication protocols
Independent of vendor specific devices and communication protocols

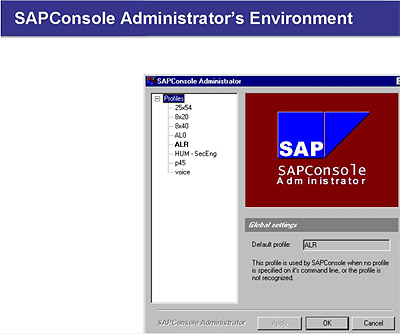

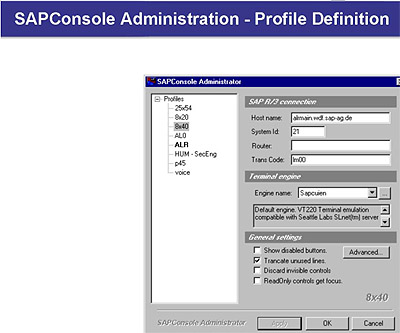

Comprehensive administration environment
Initial installation by two clients
SAPConsole -Hardware Vendors
Tested with all the leading RF vendors, including: Intermec (Telnet) Teklogix (Telnet) LXE (Telnet)erver Requirements Windows-NT platform Telnet Currently has to be acquired by the end customer (~ 500-600 US $)
SAPVtio -SAP’s Default I/O engine
Supplies plug and play capabilities
Based on Telnet protocol
Flexible and configurable
Tested with most prominent Telnet servers available
Vendor specific I/O engine
Also plug and play, when offered by vendors (optional)
based on UDP protocol
COM-technology allows vendors to offer their best technology
together with SAP’s SAPConsole
Supported controls: Output field, Input field Text fields Checkbox, Radio buttons Push button (leave one space before and after button text) Step loop
Not in 4.6B Table control Tab strip control
Not implemented Frames Interactive list Graphical controls (tree, splitt screen, ...)
|
